Tar & Pea Gravel

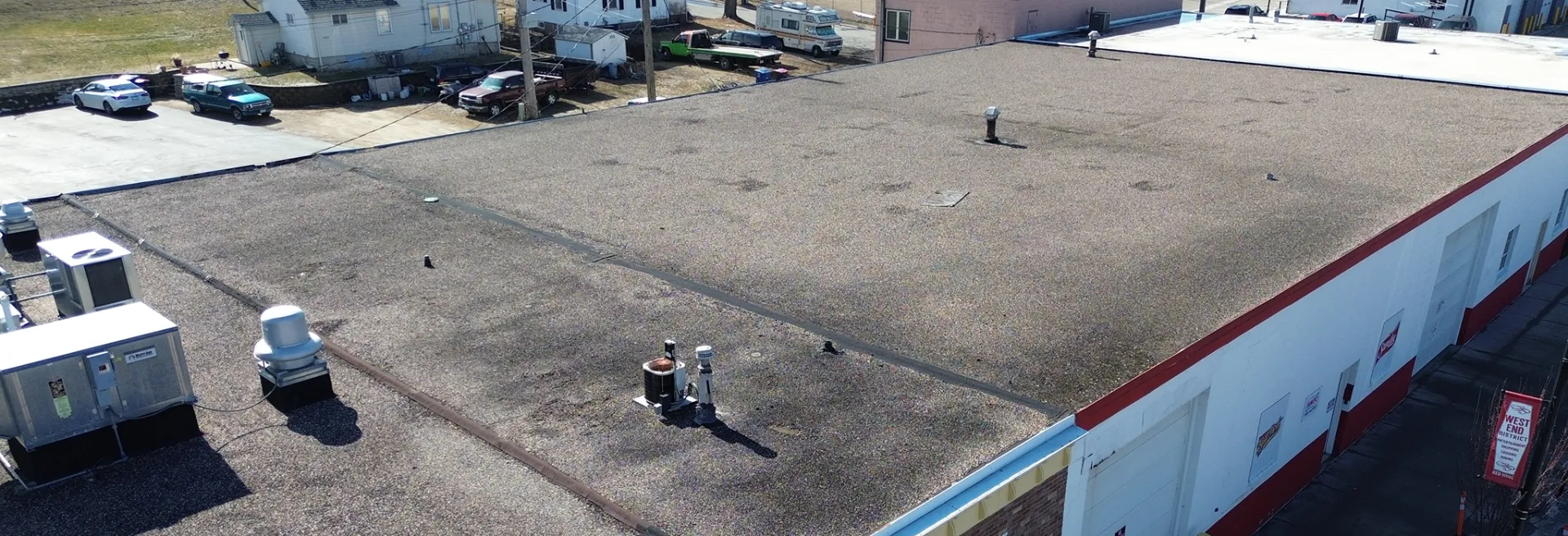

What Is Tar & Pea Gravel Roof?

Tar & Pea Gravel, or tar-and-gravel, roofing is a built-up flat-roof system made from multiple layers of bitumen (tar or asphalt) and reinforcing felts, topped with gravel or stone for protection. It has been a go‑to low-slope roofing solution for decades on commercial, industrial, and multifamily buildings thanks to its durability and time-tested performance.

Key Features and Construction

• Multi-layer “built-up” design
  A tar-and-gravel roof is constructed by alternating layers (plies) of roofing felts or fiberglass mats with hot or cold-applied bitumen. These layers form a thick, redundant waterproofing membrane that’s more forgiving of minor damage than single-ply systems.
• Bitumen (tar or asphalt)
  The waterproofing “tar” is bitumen—typically asphalt—applied hot or as a cold adhesive to saturate and bond the plies together. This sticky, viscous material acts as both adhesive and primary water barrier.
• Gravel/rock surfacing
  A flood coat of bitumen on top is covered with gravel, crushed stone, or slag, which shields the membrane from UV, weather, and impact damage. The stone also adds weight for stability and contributes to the system’s fire resistance.
• Variations and hybrids
  Modern BURs may use modified bitumen cap sheets, reflective coatings instead of gravel, or larger ballast stone over a membrane. These options fine-tune performance for specific climates and energy goals.

Installation Methods

• Traditional hot-applied BUR
  Multiple layers of felt or fiberglass plies are mopped in hot asphalt or coal-tar bitumen over the deck and insulation. A final flood coat and embedded gravel complete the system.
• Cold-applied BUR
  Instead of hot kettles, cold-applied bitumen adhesives are used to bond plies, reducing odor and open-flame risk during installation.
• Ballasted / hybrid systems
  In some designs, a waterproof membrane is loose-laid and held in place with larger rock ballast rather than fully adhered plies. Modified bitumen cap sheets and reflective coatings can be added for additional protection and energy performance.

As with other flat roofs, flashing details at walls, penetrations, and edges are critical; many issues start at these terminations rather than in the field of the roof.

Performance, Lifespan, and Maintenance

• Lifespan
  Properly installed and maintained tar-and-gravel roofs commonly last around 20–25 years, with many systems reaching 30 years or more in favorable climates. High-quality, well-maintained BUR assemblies can sometimes extend toward 35–40+ years with periodic recoating and repairs.
• Durability and weather resistance
  The multi-layer construction provides robust waterproofing and redundancy; water must penetrate several plies before reaching the deck. Gravel surfacing protects against UV, hail, and foot traffic and often supports a Class A fire rating.
• Thermal performance
  BUR systems can incorporate substantial insulation and use light-colored coatings over gravel to improve energy efficiency. The mass of the assembly also helps moderate temperature swings.
• Maintenance
  Regular inspections, debris removal, drain cleaning, and timely repairs of blisters, cracks, or bare spots are essential to keep the system watertight and extend its service life. Recoating and re-graveling at the right intervals can add years to an existing BUR.

Pros and Cons at a Glance

Advantages

• Time-tested system with decades of proven performance on low-slope roofs.
• Multi-layer redundancy offers robust waterproofing and tolerance for minor surface damage.
• Gravel surfacing protects from UV, impact, and fire, contributing to long service life.
• Can be cost-effective over the life of the roof when maintenance and longevity are factored in.
• Compatible with various coatings and overlays for upgrades or restoration.

Limitations

• Heavier than many modern membrane systems, which may require structural consideration on some buildings.
• Installation can be labor-intensive, especially for multi-ply hot-applied systems.
• More difficult to visually spot membrane issues because gravel hides the surface.
• Susceptible to ponding water, blistering, and surface cracking if drainage or maintenance is poor.
• Odor and disruption from hot kettles and asphalt fumes during traditional applications.

What Will I See If My Tar & Pea Gravel Roof Is Leaking?

Because gravel covers the membrane, many warning signs appear inside the building or in subtle changes on the roof surface.

Inside the Building

• Water stains or yellow-brown rings on ceilings and upper walls, often near low spots in the roof or around interior drains.
• Active drips during or after storms, sometimes appearing some distance from the actual leak location due to water traveling along the deck.
• Peeling paint, soft drywall, or sagging ceiling areas beneath rooftop equipment or known ponding areas.
• Musty odors, visible mold, or damp insulation above top-floor spaces.

On Top of the Roof

• Ponding water that remains more than 48 hours after rain, especially in the same depressions or near clogged drains.
• Bare or thin gravel patches where stone has washed away or been displaced, leaving black bitumen exposed to sun and weather.
• Blisters, bubbles, or soft spots underfoot where moisture may be trapped between plies.
• Cracks, alligatoring, or splits in exposed asphalt/bitumen, particularly in high-traffic or ponding areas.
• Deteriorated or open flashings at walls, curbs, or penetrations, sometimes with loose metal edges or failed sealant.

If you see any of these signs, scheduling a professional tar-and-gravel roof inspection with Fischer Roofing Company can quickly help you address localized issues before they spread and require major structural repairs or a full replacement.
